Unlined Horizontal Pump for Gravel

SG group of pumps Model: SG/300G (14/12G-G) Unlined Horizontal Pumps for Gravel SG/300G is featured by a metal casing with no separate liners and no elastomer wear parts. The design features a hard metal casing and wear components and is capable of passing extremely large particles. They are typically used for pumping gravel, dredging, or pumping solids that are too large to be handled by type SH pumps. SG gravel pumps adopt larger impellers and heavier casing construction. Sizes range from ...

Sand Pumps :River Dredging Pumps

Send Inquiry

Contact

SG group of pumps

Unlined Horizontal Pumps for Gravel SG/300G is featured by a metal casing with no separate liners and no elastomer wear parts. The design features a hard metal casing and wear components and is capable of passing extremely large particles. They are typically used for pumping gravel, dredging, or pumping solids that are too large to be handled by type SH pumps. SG gravel pumps adopt larger impellers and heavier casing construction. Sizes range from 100mm to 400mm.

Material Construction:

Description	Standard Material	Optional Material
Impeller	A05
Door	A05
Bowl	A05
Front Cover	A05
Back Liner	A05
Shaft	Carbon Steel	SUS304, SUS316(L)
Shaft Sleeve	3Cr13	SUS304, SUS316(L)
Shaft Seal	Gland Packing Seal	Expeller Seal, Mechanical Seal

Applications of Unlined Horizontal Pump for Gravel:

Sand and Gravel; Hydraulic Mining; Sugar Beet & Other Root Vegetables; Slag Granulation; Tunnelling; River Dredging.

Specifications:

Pump Model	S×D (inch)	Allowable Max. Power (kw)	Clear Water Performance					Impeller
			Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
			m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
SG/100D	6×4	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
SG/150E	8×6	120	126-576	6-45	800-1400	60	3-4.5		391
SG/200F	10×8	260	216-936	8-52	500-1000	65	3-7.5		533
SG/250G	12×10	600	360-1440	10-60	400-850	65	1.5-4.5		667
SG/300G	14×12	600	432-3168	10-64	300-700	68	2-8		864
SG/400T	18×16	1200	720-3600	10-50	250-500	72	3-6		1067

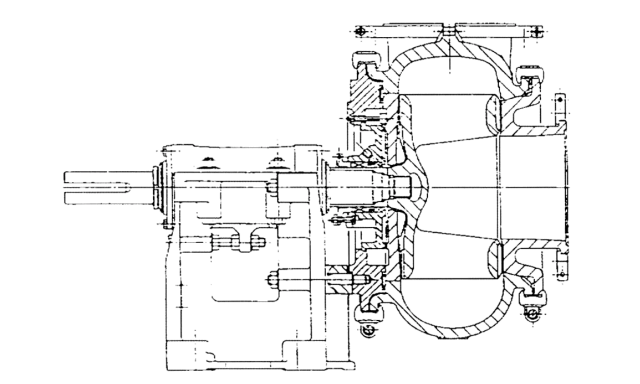

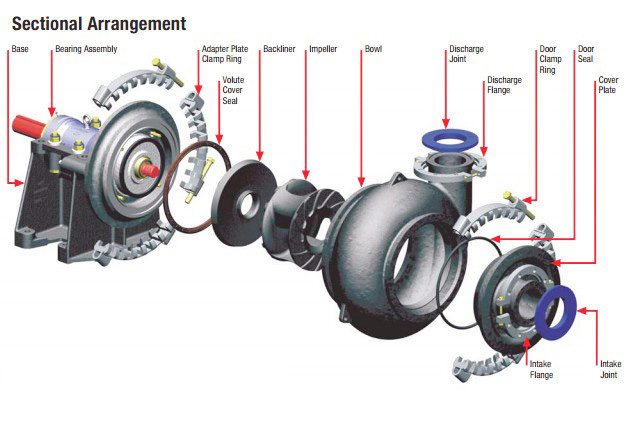

Structure:

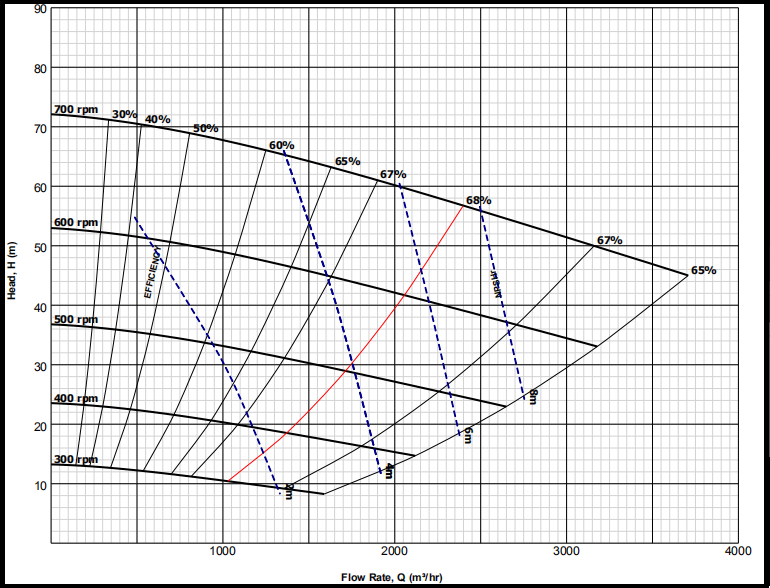

Performance Curve:
