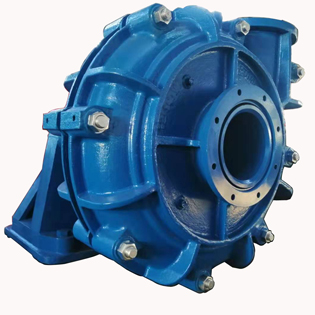

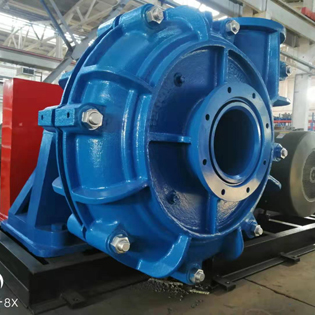

Pump Model: SH/250ST (12/10ST-AH)
SH/250ST is equivalent to 12/10ST-AH, a 10” discharge slurry pump, which is widely used for abrasive and robust slurry applications. It’s wet-end spare parts are made of high chrome alloy, a kind of white iron, similar to ASTM A532.
Material Construction:
| Part Description | Standard | Alternative |
| Impeller | A05 | A33, A49 |
| Volute Liner | A05 | A33, A49 |
| Front Liner | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Split Outter Casings | Grey Iron | Ductile Iron |
| Shaft | Carbon Steel | SS304, SS316 |
| Shaft Sleeve | SS304 | SS316, Ceramic, Tungstan Carbide |
| Shaft Seal | Expeller Seal | Gland Packing, Mechanical Seal |
| Bearings | ZWZ, HRB | SKF, Timken, NSK etc. |
Applications:
Mining Industry; Minerals Processing; Tailings Disposal; Fly Ash; Bottom Ash; Sludge and Slurry etc.
Specifications:
Flowrate: 936-1980m3/hr; Head: 7-68m; Speed: 300-800rpm; Bearing Assembly: SH005M or FAM005M
Impeller: 5-Vane Closed Type with Vane Diameter: 762m; Max. Passage Size: 86mm; Max. Efficiency: 82%
