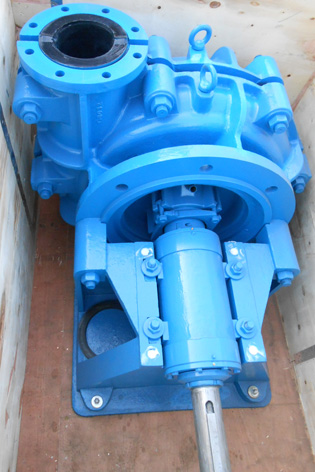

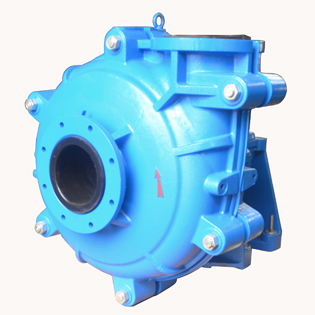

Pump Model: SHR/200F (10/8F-AHR)

SHR/200F is equivalent to 10/8F-AHR, a 8” discharge rubber lined slurry pump, which is widely used for corrosive slurry applications. SHR/200F is horizontal centrifugal type heavy duty rubber lined slurry pump. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SHR is high corrosion-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of natural rubber R55, a black soft natural rubber, which has superior erosion resistance to all other materials in fine particle slurry applications. The high erosion resistance of R55 is provided by the combination of its high resilience, high tensile strength and low Shore Hardness.

Applications:

Mine Dewatering; Sand Pumping; Manure Slurry; Oil Sands; Tailings and Aggregate; Coal Production etc.

Material Construction:

Part DescriptionStandardAlternative
ImpellerR55Polyurethane
Cover Plate Liner
R55Polyurethane
Frame Plate Liner
R55Polyurethane
ThroatbushR55Polyurethane
Split Outter CasingsGrey IronDuctile Iron
ShaftCarbon SteelSS304, SS316
Shaft SleeveSS304SS316, Ceramic, Tungstan Carbide
Shaft SealExpeller SealGland Packing, Mechanical Seal
BearingsZWZ, HRBSKF, Timken, NSK etc.

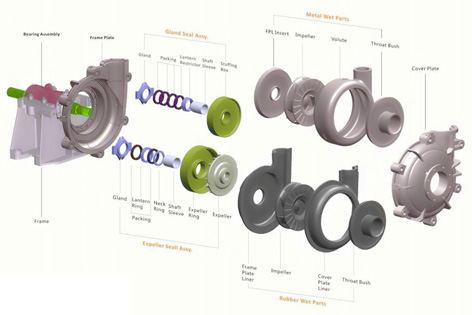

Construction & Structure:

AH and AHR

Specifications:

Flowrate: 540-1188m3/hr; Head: 12-50m; Speed: 400-750rpm; Bearing Assembly: FAM005M

(Optional Bearing Assembly: SH005M with Max. Motor Power of 560Kw)

Impeller: 5-Vane Closed Type with Vane Diameter: 686mm; Max. Passage Size: 76mm; Max. Efficiency: 75%

10-8FAHR
