Rubber Lined Vertical Slurry Pump

Pump Model: SVR/65Q (65QV/SPR) The SVR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the SVR sump pump ideally suited for heavy continous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged SVR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands o...

Rubber Vertical Pump:Cantilever Vertical Slurry Pump Rubber Lined

Send Inquiry

Contact

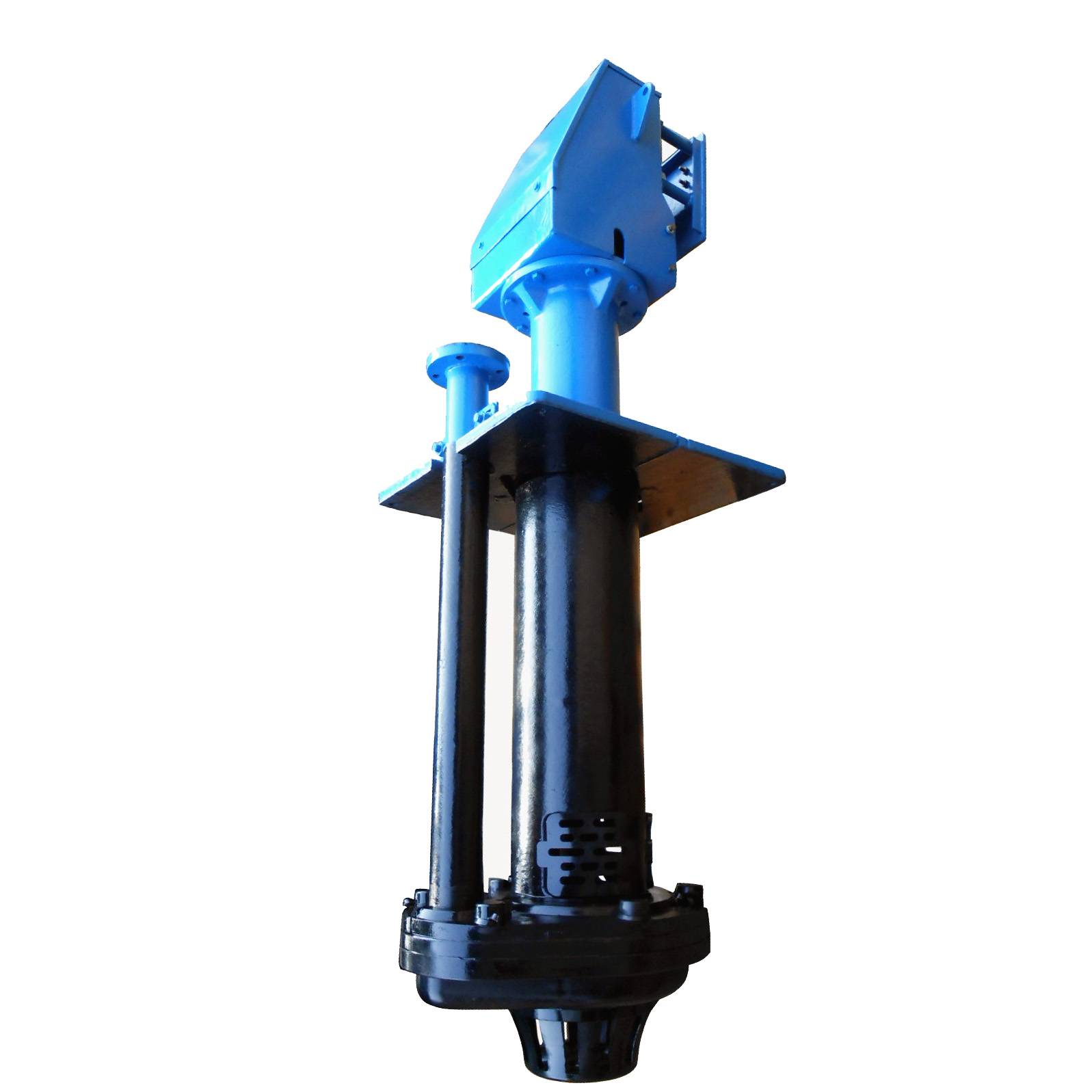

Pump Model: SVR/65Q (65QV/SPR)

The SVR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the SVR sump pump ideally suited for heavy continous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged SVR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:

Minerals Processing

Coal Preparation

Chemical Processing

Effluent Handling

Sand and Gravel

and almost every other tank, pit or hole-in-the-ground slurry handling situation. The SVR design with elastomer covered components makes it ideal for: Corrosive slurries; Large Particle sizes; High density slurries; Heavy duties demanding cantilever shafts.

Material Construction:

Description	Standard Material	Optional Material
Impeller	Natural Rubber R55
Casing	Natural Rubber R55
Back Liner	Natural Rubber R55
Shaft	Carbon Steel	SUS304, SUS316(L)
Discharge Pipe	20# Mild Steel	SUS304, SUS316(L)
Column	20# Mild Steel	SUS304, SUS316(L)

Specifications:

Pump Model	Allowable Max. Power (kw)	Material	Clear Water Performance					Impeller
		Material	Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	Length Shaft (mm)	No. of Vanes	Vane Dia. (mm)
		Impeller	m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	Length Shaft (mm)	No. of Vanes	Vane Dia. (mm)
SVR/40P	15	Rubber (R55)	19.44-43.2	4.5-28.5	1000-2200	40	900	5	195
SVR/65Q	30		23.4-111	5-29.5	700-1500	50	1200		290
SVR/100R	75		54-289	5-35	500-1200	56	1500		390
SVR/150S	110		72-504	10-35	500-1000	56	1800		480
