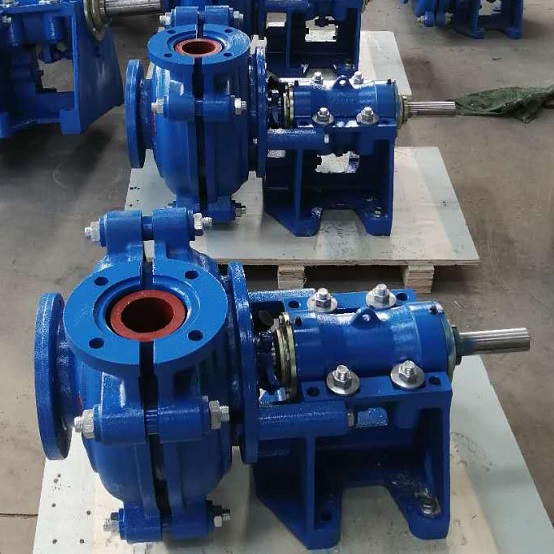

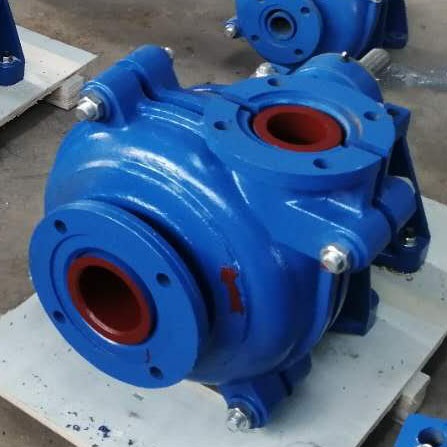

Pump Model: SH/75C (4/3-AH)
SH/75C is equivalent to 4/3C-AH, a 3” discharge small slurry pump, which is widely used for abrasive and robust slurry applications. The slurry pump can be supplied as bare shaft slurry pump only, or can be supplied complete with electric motor and accessories. For electric motors, we can supply brands like ABB, Siemens, WEG, and for accessories, both coupling and belts & pulleys are available.
SH/50C is horizontal centrifugal type heavy duty slurry pump. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SH is high wear-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of high chrome alloy, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532.
Material Construction:
| Part Description | Standard | Alternative |
| Impeller | A05 | A33, A49 |
| Volute Liner | A05 | A33, A49 |
| Front Liner | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Split Outter Casings | Grey Iron | Ductile Iron |
| Shaft | Carbon Steel | SS304, SS316 |
| Shaft Sleeve | SS304 | SS316, Ceramic, Tungstan Carbide |
| Shaft Seal | Expeller Seal | Gland Packing, Mechanical Seal |
| Bearings | ZWZ, HRB | SKF, Timken, NSK etc. |
Applications:
Mine and Quarry, Brine Salt Slurry, Sugar Industry, Clay, Zinc Mining, Suspension Prepation, Sand and Gravel etc.
Specifications:
Flowrate: 86.4-198m3/hr; Head: 9-52m; Speed: 1000-2200rpm; Max. Passage Size: 28mm; Max. Efficiency: 71%
Impeller: 5-Vane Closed Type with Vane Diameter: 265m; Max. Driven Motor Power: 30Kw
(Option: Change C bearing assembly to CC, which can be driven by motor of max. 55Kw, Change C bearing assembly to D, which can be driven by motor of max. 60Kw)
