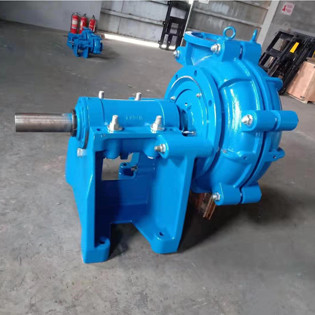

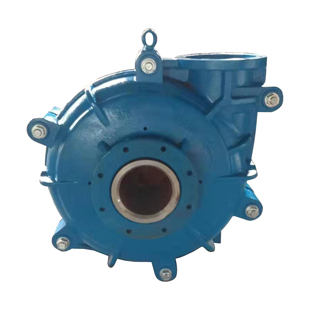

Pump Model: SH/150F (8/6F-AH)
SH/150F is equivalent to 8/6F-AH, a 6” discharge slurry pump, which is widely used for abrasive and robust slurry applications. SH/150F is horizontal centrifugal type heavy duty slurry pump. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SH is high wear-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of high chrome alloy, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532.
Material Construction:
| Part Description | Standard | Alternative |
| Impeller | A05 | A33, A49 |
| Volute Liner | A05 | A33, A49 |
| Front Liner | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Split Outter Casings | Grey Iron | Ductile Iron |
| Shaft | Carbon Steel | SS304, SS316 |
| Shaft Sleeve | SS304 | SS316, Ceramic, Tungstan Carbide |
| Shaft Seal | Expeller Seal | Gland Packing, Mechanical Seal |
| Bearings | ZWZ, HRB | SKF, Timken, NSK etc. |
Applications:
Waste Utilisation; Sewage Water; Ash Transport; Bentonite Conveying; Ore Mining; Filter Press; Kaolin Mining etc.
Specifications:
Flowrate: 360-828m3/hr; Head: 10-61m; Speed: 500-1140rpm; Bearing Assembly: F005M
Impeller: 5-Vane Closed Type with Vane Diameter: 510mm; Max. Passage Size: 63mm; Max. Efficiency: 72%
(Optional Impeller: 6-Vane Impeller, Closed Type, Vane Diameter: 545mm with Max. Passage Size 50mm)

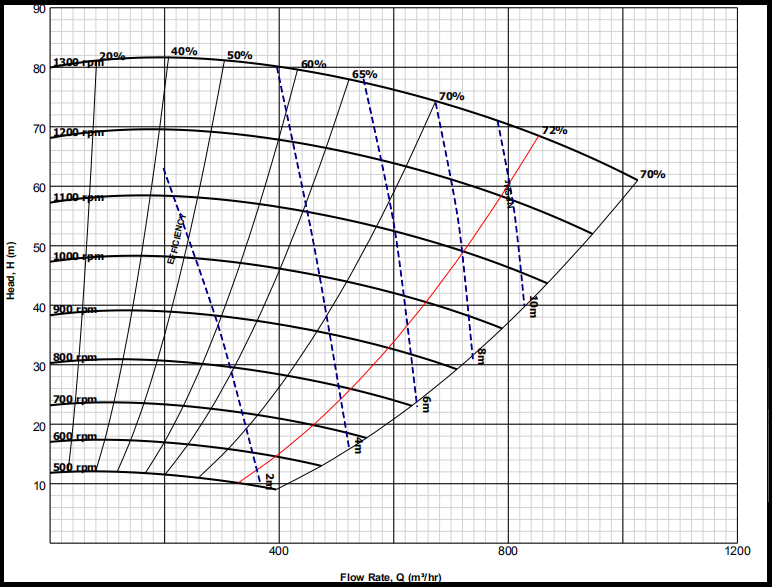

Performance Curve with Standard Impeller, Metal F6147A05:
