Pump Model: SL/100D (100D-L)

SL/100D is equivalent to 100D-L, a 4” discharge slurry pump designed for light duty sludge applications. It’s wet-end spare parts are also made of high chrome alloy A05, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532. Alloy A05 is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

Material Construction:

Part DescriptionStandardAlternative
ImpellerA05A33, A49
Volute LinerA05A33, A49
Front LinerA05A33, A49
Back LinerA05A33, A49
Split Outter CasingsGrey IronDuctile Iron
ShaftCarbon SteelSS304, SS316
Shaft SleeveSS304SS316, Ceramic, Tungstan Carbide
Shaft SealExpeller SealGland Packing, Mechanical Seal
BearingsZWZ, HRBSKF, Timken, NSK etc.

Applications:

Mining and Mineral Processing; SAG and AG Mill Discharge Recirculation Duties; Cyclone Feed; Mine Refuse and Tailings;

Industrial Processing; Coal and Power Plant Ash; Sand and Gravel; Mining Duty Abrasive Slurries etc.

Specifications:

Pump
Model

Outlet
(mm)

Allowable
Max. Power (kw)

Clear Water Performance

Capacity  Q

Head
H(m)

Speed
n(r/min)

Max.Eff.
η%

NPSH
(m)

m3/h

l/s

SL/20A

20

7.5

2.34-10.8

0.65-3

6-37

1400-3000

30


SL/50B

50

15

16.2-76

4.5-20

9-44

1400-2800

55


SL/75C

75

30

18-151

5-42

4-45

900-2400

57


SL/100D

100

60

500-252

14-70

7-46

800-180

60

2-3.6

SL/150E

150

120

1115-486

32-135

12-51.5

800-1500

65

2-6

SM/200E

200

120

666-1440

185-400

14-60

600-1100

73

4-10

SM/200F

200

260

666-1440

185-400

14-60

600-1100

73

4-10

SL/250E

250

120

396-1425

110-396

8-30

500-800

77

2-10

SL/300S

300

560

468-2538

130-705

8-60

400-950

79

2-10

SL/350S

350

560

650-2800

180-780

10-59

400-840

81

3-10

SL/400ST

400

560

720-3312

200-920

7-51

300-700

80

2-10

SL/450ST

450

560

1008-4356

280-1210

9-48

300-600

80

2-9

SL/550TU

550

1200

1980-7920

560-2200

10-50

250-475

86

4-10

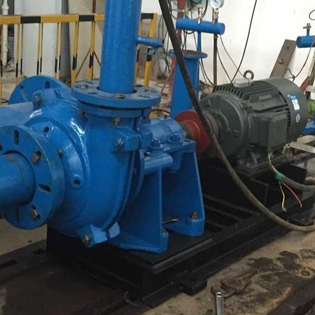

 SL100D at pump test station (2)
