High Pressure Heavy Duty Slurry Pump

High Pressure Heavy Duty Slurry Pump

Pump Model: 250ZJ-A75  is a professional supplier of slurry pumps and spare parts originated from China, with over 10 years experience in manufacturing and exporting. Our slurry pumps ranges from 1 inch to 30 inch, which are widely used for mining, dredging and mills. ZJ series slurry pumps, totally designed and developed by Chinese local engineers, are high head slurry pumps mainly used for filter press, coal washing, power plants etc.. 250ZJ is a 10-inch discharge size slurry pump, wi...

Send Inquiry

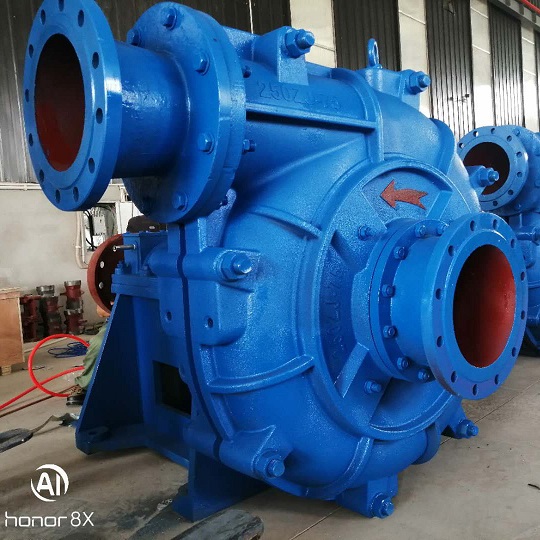

Pump Model: 250ZJ-A75

 professional supplier of slurry pumps and spare parts originated from China, with over 10 years experience in manufacturing and exporting. Our slurry pumps ranges from 1 inch to 30 inch, which are widely used for mining, dredging and mills.

ZJ series slurry pumps, totally designed and developed by Chinese local engineers, are high head slurry pumps mainly used for filter press, coal washing, power plants etc.. 250ZJ is a 10-inch discharge size slurry pump, with impellers varying from 600mm to 1030mm.

It’s wet-end spare parts are made of high chrome alloy ONLY, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532. There are no elastomer alternatives.

Material Construction:

Part DescriptionStandardAlternative
ImpellerA05A33, A49
Volute LinerA05A33, A49
Front LinerA05A33, A49
Back LinerA05A33, A49
Split Outter CasingsGrey IronDuctile Iron
ShaftCarbon SteelSS304, SS316
Shaft SleeveSS304SS316, Ceramic, Tungstan Carbide
Shaft SealExpeller SealGland Packing, Mechanical Seal
BearingsZWZ, HRBSKF, Timken, NSK etc.

Applications:

Filter Press Loading, Power Plants, Mineral Processing, Flue Gas Desulphurization, Coal Washing, Metallurgy etc.

Specifications:

Flowrate: 300-1480m3/hr; Head: 20.8-97.5m; Speed: 490-980rpm; Lubircation: Oil

Impeller: 5-Vane Closed Type with max. passage size 72mm
