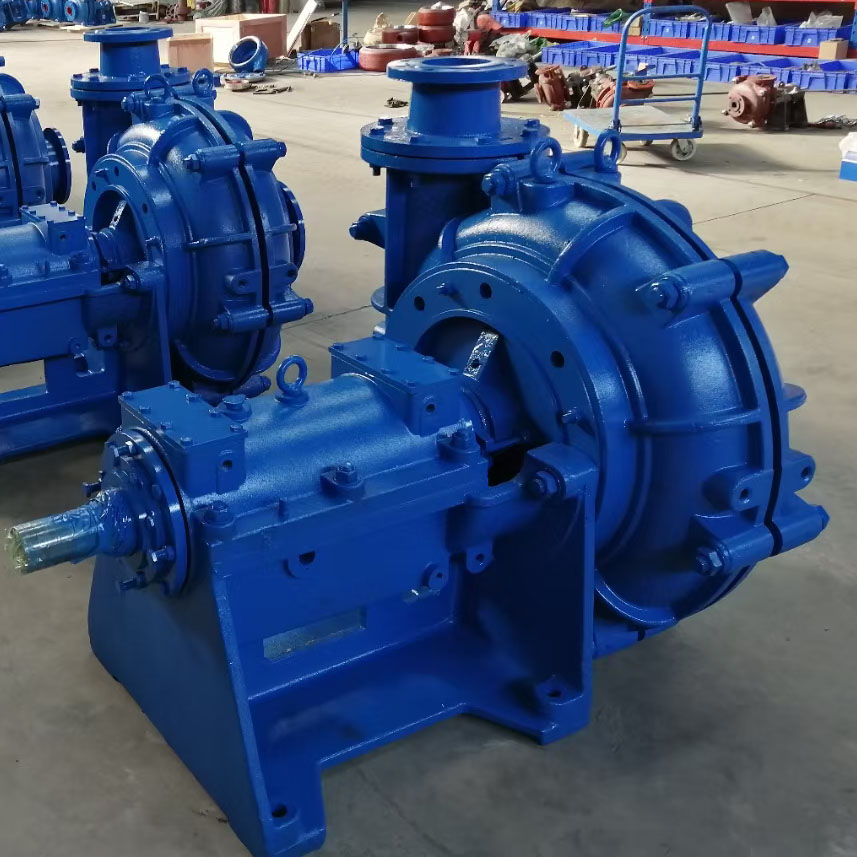

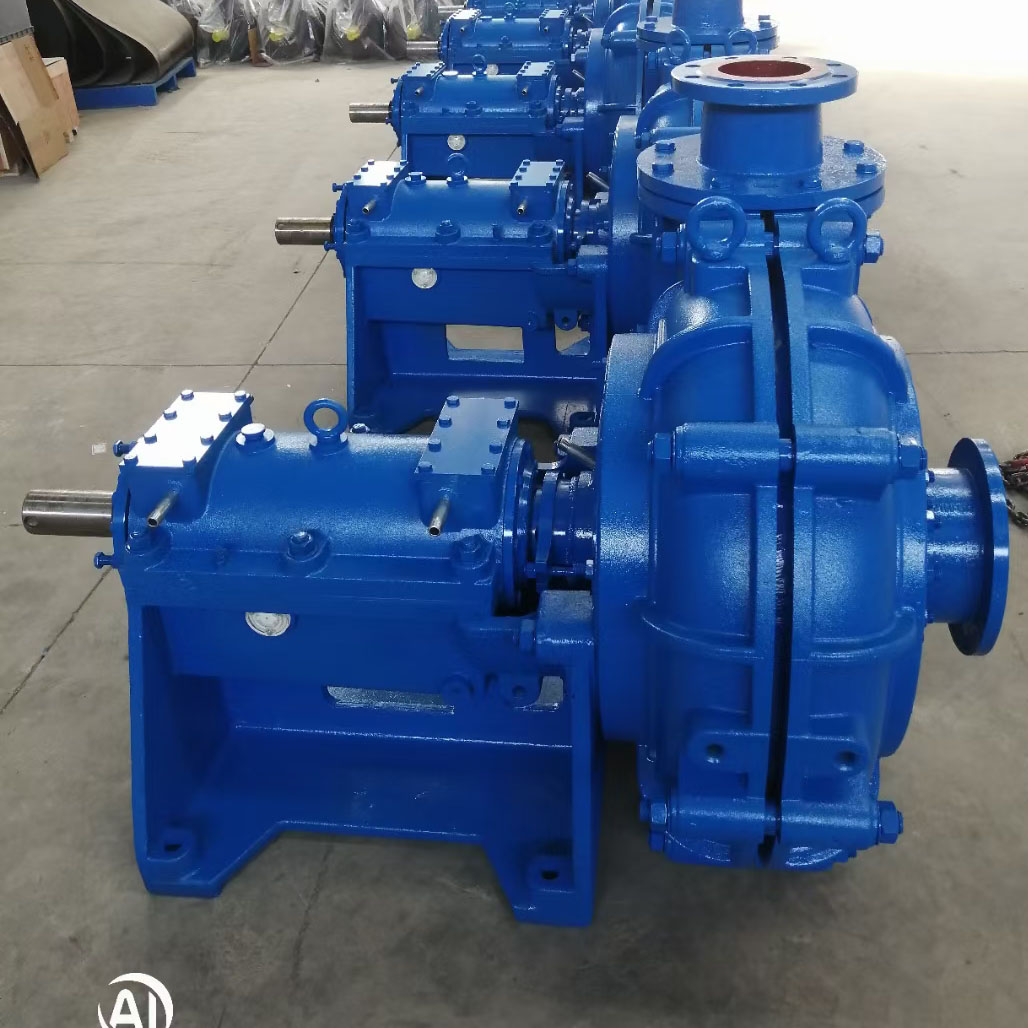

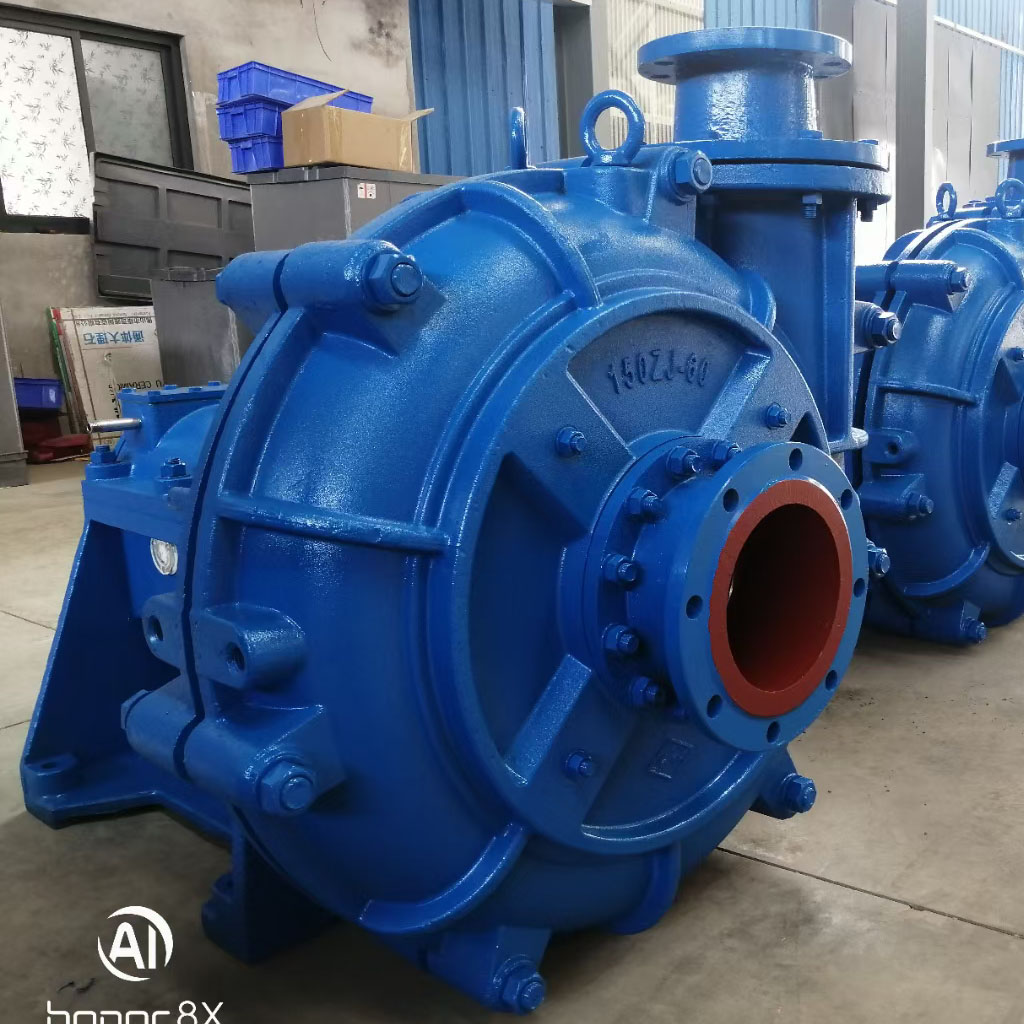

Pump Model: 150ZJ-A60
ZJ series slurry pumps, totally designed and developed by Chinese local engineers, are high head slurry pumps mainly used for filter press, coal washing, power plants etc.. 150ZJ is a 6-inch discharge size slurry pump, with impellers varying from 420mm to 710mm.
It’s wet-end spare parts are made of high chrome alloy ONLY, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532. There are no elastomer alternatives.
Material Construction:
Part Description | Standard | Alternative |
Impeller | A05 | A33, A49 |
Volute Liner | A05 | A33, A49 |
Front Liner | A05 | A33, A49 |
Back Liner | A05 | A33, A49 |
Split Outter Casings | Grey Iron | Ductile Iron |
Shaft | Carbon Steel | SS304, SS316 |
Shaft Sleeve | SS304 | SS316, Ceramic, Tungstan Carbide |
Shaft Seal | Expeller Seal | Gland Packing, Mechanical Seal |
Bearings | ZWZ, HRB | SKF, Timken, NSK etc. |
Applications:
Filter Press Loading, Power Plants, Mineral Processing, Flue Gas Desulphurization, Coal Washing, Metallurgy etc.
Specifications:
Flowrate: 135-550m3/hr; Head: 14.7-63.5m; Speed: 490-980rpm; Lubircation: Oil
Impeller: 5-Vane Closed Type with max. passage size 48mm
